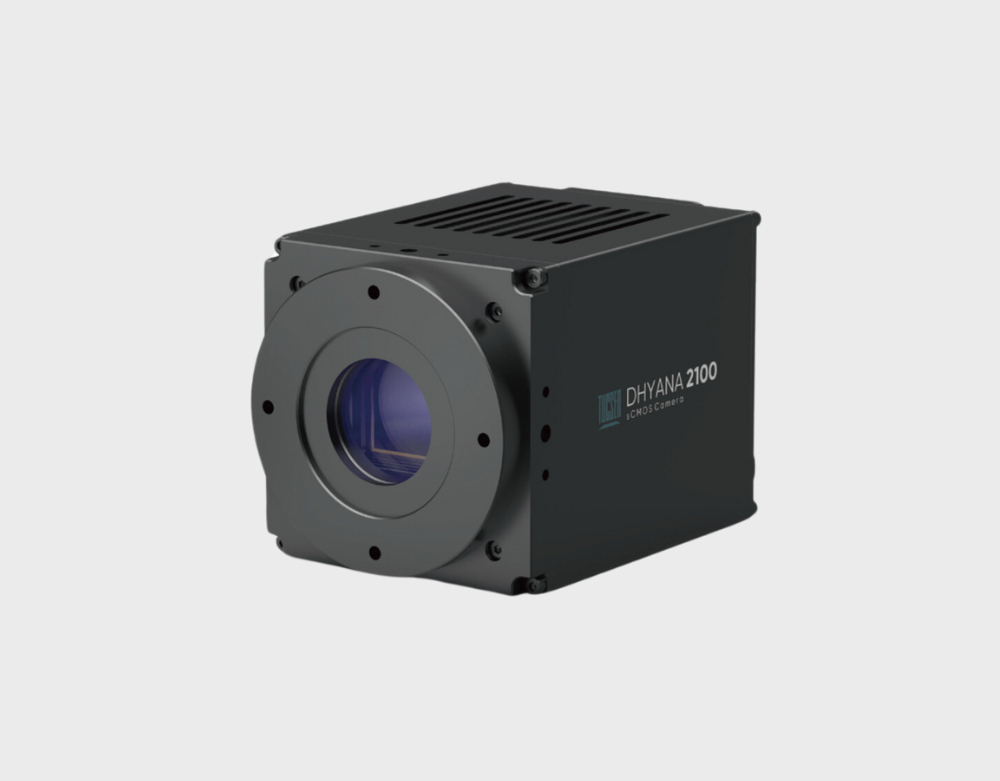

Dhyana 2100

Overview

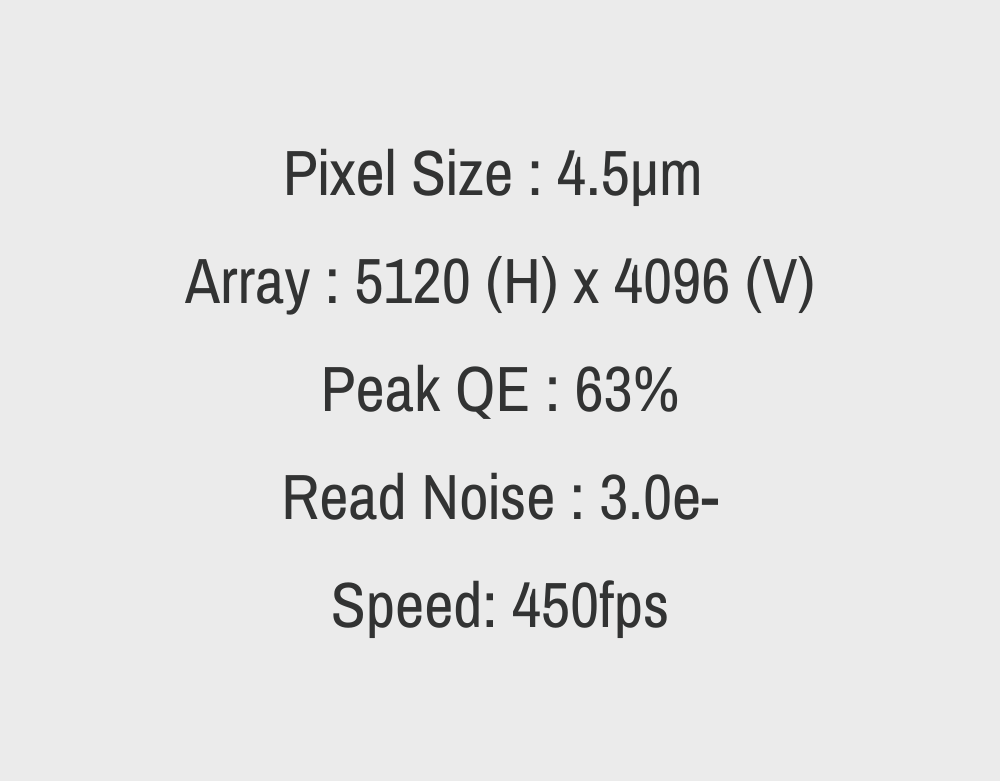

The Dhyana 2100 sCMOS is engineered to deliver an unmatched combination of speed and resolution using its advanced sensor. It achieves an impressive 450 frames per second at full resolution (5120 x 4096), ensuring exceptional high-speed performance, even in low-light conditions.

1725fps @ 5MP – Fast Binning Mode

The Dhyana 2100 sCMOS is designed for detecting low signals at high speeds. With enhanced sensitivity, dynamic range, and an improved frame rate, it reaches 1725 frames per second at 5 million pixels resolution.

High-Speed at High Resolution

Capable of capturing 450 frames per second at an extraordinary 21 million pixel resolution, the Dhyana 2100 sCMOS allows you to observe intricate details without distortion. This high-speed performance is achieved while maintaining excellent image quality, thanks to its global shutter.

Advanced Cooling Technology

The Dhyana 2100 sCMOS offers two cooling options—liquid or air—to ensure thermal stability and reduce dark current. Cooling is essential for large format cameras running at high speeds, as excessive heat can increase dark current and cause measurement variations due to rising sensor temperatures over time.
