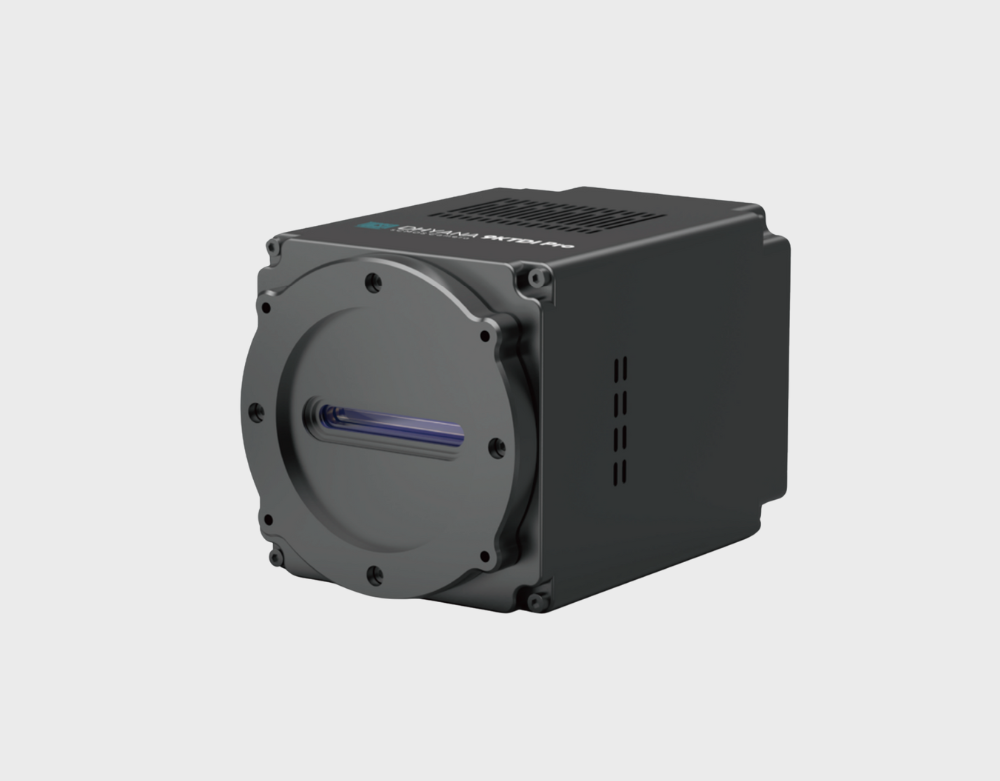

Dhyana 9KTDI Pro

Overview

The Dhyana 9KTDI Pro sCMOS features a next-generation back-illuminated TDI technology with a spectral response range of 200-1100nm, making it suitable for ultraviolet, visible, and near-infrared imaging. This TDI technology provides exceptionally high signal-to-noise ratios (SNR) for low-light applications, and its high-speed line frequency of up to 600kHz at 9K significantly enhances visual detection efficiency.

82% Quantum Efficiency and Wide Spectrum

The Dhyana 9KTDI Pro sCMOS employs back-illuminated technology, boasting a broad spectral response range from 200nm to 1100nm. When combined with 256-level TDI and advanced cooling technology, it excels in low-light imaging applications across ultraviolet, visible, and near-infrared spectrums.

256 TDI Stages for Enhanced SNR

Supporting 16 to 256 levels of Time Delay Integration (TDI) imaging, the Dhyana 9KTDI sCMOS maximizes signal integration over time, enabling the capture of images with a higher signal-to-noise ratio even in challenging lighting conditions.

High Throughput of Up to 600kHz @ 9K

The Dhyana 9KTDI Pro is equipped with CoaXPress-Over-Fiber 2x QSFP+ high-speed interfaces, providing a transmission efficiency equivalent to 54 times that of back-illuminated CCD-TDI cameras, significantly improving equipment detection efficiency. The camera's line frequency can reach up to 9K@ 600 kHz, offering the fastest multi-stage TDI line scanning solution in the industrial inspection.
